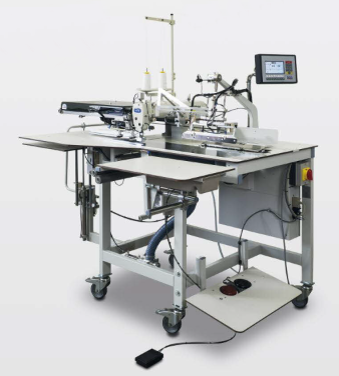

BASS 5800
Automatic lockstitch sewing system for felling and sewing the fly pieces, pocket facings and wing pockets
Main technical specifications:
Maximum sewing speed – 4500 st./min.
Stitch length – 0.5-5 mm.
Productivity – up to 480 complete trousers (2 x fly piece, 4 x pocket facings)
Advantages
✓ Designed for trouser production. Beside felling pocket facings on pocket pouches, the left fly piece can be felled and the right fly piece can be felled on, and even the right and left pocket facings can be felled at the opening.
✓ Folding and placing station (up to 318 mm fly piece length). Customized programming possible for stitch length, back tacking or stitch condensation.
✓ Automatic cutting notches for the trouser part and the fly piece.
✓ Equipped with automatic blowing off of the parts at the end of the seam, laser beam marking light, height-adjustable frame.
Industry Applications
Production of
knitwear
Production of
knitwear
Production of
upholstered furniture
Production of
upholstered furniture
Production of
textile clothing
Production
textile bedding
Automotive
industry
Automotive
industry
Production of bags,
footwear, leather goods
Production of bags,
footwear, leather goods
Home
textiles
Home
textiles
Specification
Stitch length
Stitch length
Stitch length
Stitch length
HB57-190060
12
1,800*
M / MS
HB57-190060
12
1,800*
M / MS
HB57-190060
12
1,800*
M / MS
HB57-190060
12
1,800*
M / MS
HB57-190060
12
1,800*
M / MS
